5SL4125-7RC

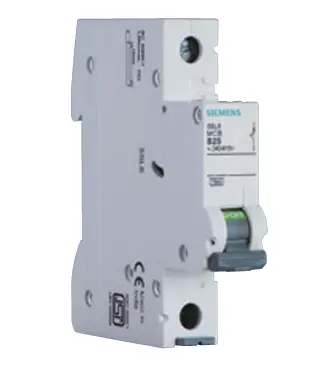

Siemens 5SL4125-7RC MCB - 25A, 1 Pole, C Curve, 10 kA
The Siemens 5SL4125-7RC is a 25 A, 1-pole Betagard 5SL4 Miniature Circuit Breaker with C characteristic and 10 kA breaking capacity. The C curve trips at 5 to 10 times rated current, making it suited to general-purpose circuits with moderate inrush, such as lighting, sockets, small motors and control circuits. Designed for DIN-rail mounting in distribution boards and control panels, it protects cables and equipment against overload and short circuit.
Key Features
- C tripping characteristic: trips at 5 to 10 times rated current
- Breaking capacity 10 kA as per IS/IEC 60898-1
- 1-pole, 1 module width (18 mm per module)
- Protection against overload and short circuit
- DIN-rail mounting (35 mm)
- Compact Siemens design with clear ON/OFF indication
- ISI marked (CM/L No. 2255548)
- Suitable for DC networks in telecom applications: 60 V DC (1P) / 110 V DC (2P) - contact Siemens for connection diagram
Technical Specifications
| Brand | Siemens |
|---|---|
| Product Range | Betagard 5SL4 Miniature Circuit Breaker |
| Order Code | 5SL4125-7RC |
| Rated Current (In) | 25 A |
| Number of Poles | 1 |
| Rated Voltage | 240/415 V AC |
| Tripping Characteristic | C Characteristic |
| Breaking Capacity | 10 kA as per IS/IEC 60898-1 |
| Standard | IS/IEC 60898-1:2015 |
| Frequency | 50-60 Hz |
| Module Width | 1 MW (1 MW = 18 mm) |
| Mounting | 35 mm DIN rail |
| Standard Pack | 12 nos. |
| Certification | ISI marked, CM/L No. 2255548 |
Typical Applications
General-purpose circuits with moderate inrush, such as lighting, sockets, small motors and control circuits; final distribution boards, control panels and machine wiring in residential, commercial and industrial installations.
Genuine Siemens product supplied by Aventra Systems, authorised Siemens channel partner. Need other ratings, poles, curves or bulk quantities? Contact us for a quotation.
