DUO TRACER-4 : O2 ; H2

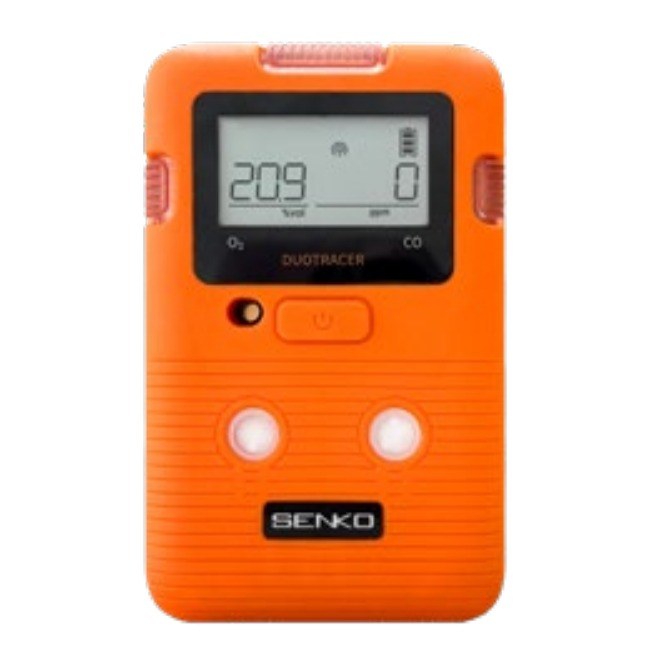

DUO TRACER Portable Dual Gas Detector
DUO TRACER is a portable dual gas detector that monitors two gases at the same time by diffusion. It shows both concentrations live on the LCD, records peak and minimum values, and warns the wearer by buzzer, flashing LEDs and vibration as soon as a safety threshold is crossed. Settings can be changed wirelessly or with the SENKO IR Link.
This Configuration
Channel A (slot 1): O₂ Oxygen | Channel B (slot 2): H₂S Hydrogen Sulfide
| Gas | Measuring Range | Low Alarm | High Alarm | Resolution |
|---|---|---|---|---|
| O₂ (Oxygen) | 0-30 %Vol | 19 %Vol | 23 %Vol | 0.1 %Vol |
| H₂S (Hydrogen Sulfide) | 0-100 ppm | 10 ppm | 15 ppm | 0.1 ppm |
Key Features
- Simultaneous detection of two gases
- Wireless and IR connectivity for setup and data
- Real-time readings with max/min record
- IP67 water and dust proof
- Compact and lightweight (200 g)
- Visual, audible and vibration alarms
- Event and data logging
- Single-button operation
- Bump test and calibration of up to 4 units at once on Dock DUO
- Intrinsically safe, globally certified (IECEx, ATEX, CSA/UL, PESO and more)
Specifications
| Sensor Type | Electrochemical |
|---|---|
| Measuring Method | Diffusion |
| Enclosure | Rubberized polycarbonate |
| Dimensions | 56 (W) x 89 (H) x 21 (D) mm |
| Weight | 200 g |
| Operating Temperature | -20°C to +50°C |
| Operating Humidity | 15% to 90% RH (non-condensing) |
| Ingress Protection | IP67 |
| Alarms | LCD + flashing LEDs, buzzer, vibration |
| Display | LCD |
| User Interface | Single button |
| Battery | Replaceable primary cell 3.6 V (Li/SOCl₂) |
| Battery Life | Approx. 2 years (8 h/day use, wireless off) |
| Atmospheric Pressure | 80 kPa to 120 kPa |
| Attachment | Clip for clothing, belt or helmet |
| Warranty | 2 years from date of purchase |
Certification & Compliance
IECEx / ATEX / INMETRO / CSA/UL / CNEx & CPA: Ex ia IIC T4 Ga; KCs; PESO, RoHS2, FCC, EMC
In the Box
Detector, calibration cap, user manual, calibration & test certificate
Compatible Accessories
SENKO IR Link, Dock DUO
Need a different gas, range or a quotation for multiple units? Contact Aventra Systems.
