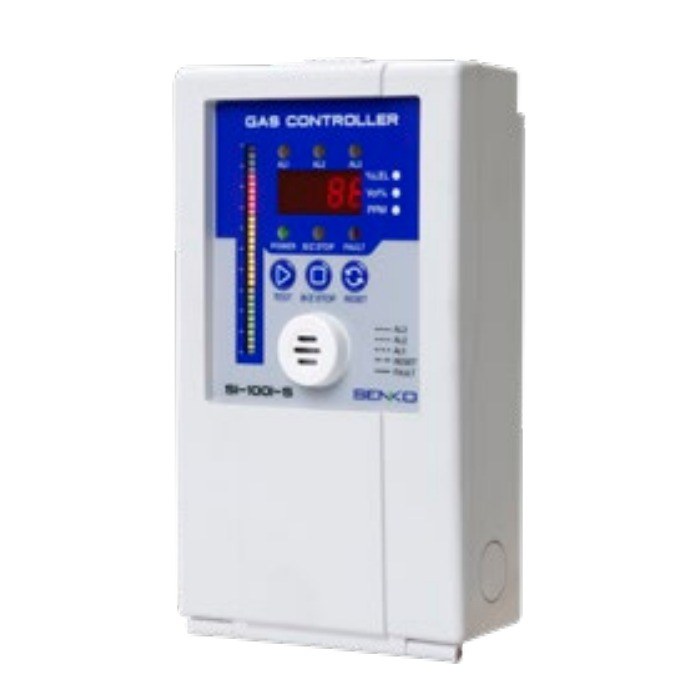

SI-100 IS : Single channel Controller
SI-100IS Receiver for Fixed Gas Detector (Bar-Graph Type)
SI-100IS is a single-channel wall-mount controller and alarm for one SENKO fixed detector. A 30-segment bar graph plus 4-digit display shows the reading against three alarm steps, with relay outputs for alarms and fault.
Key Features
- Clean design, simple structure
- 30-bar graph by alarm step (1st, 2nd, 3rd)
- 3-colour LED and 4-digit FND display
- Easy zero and built-in calibration mode
- Self-test mode
- Calibration count display
- Built-in light bar (option)
Specifications
| Input | 4-20 mA |
|---|---|
| Display | 30-bar graph, 3 alarm LEDs, 3 status LEDs, 4-digit 7-segment |
| Buzzer | 80 dB |
| Alarm Outputs | Alarm 1/2/3: 12 VDC and dry contact (COM/NO/NC) |
| Cable | CVVSB 1.5 sq / AWG20 x 3 wire, 2,500 m max |
| Mounting | Wall mount |
| Operating Temperature | -20°C to +50°C |
| Power | 100-240 VAC 50/60 Hz |
| Material | ABS |
| Dimensions | 120 (W) x 200 (H) x 51 (D) mm |
| Weight | 0.5 kg |
Certification & Compliance
CE
In the Box
Detector with standard accessories (gas type, range and options to be specified at order)
Compatible Accessories
SI-100C, SI-100D, SI-200 series detectors
Need a different gas, range or a quotation for multiple units? Contact Aventra Systems.
₹ 28,732.00
