SI-200E : CO_0-2000ppm

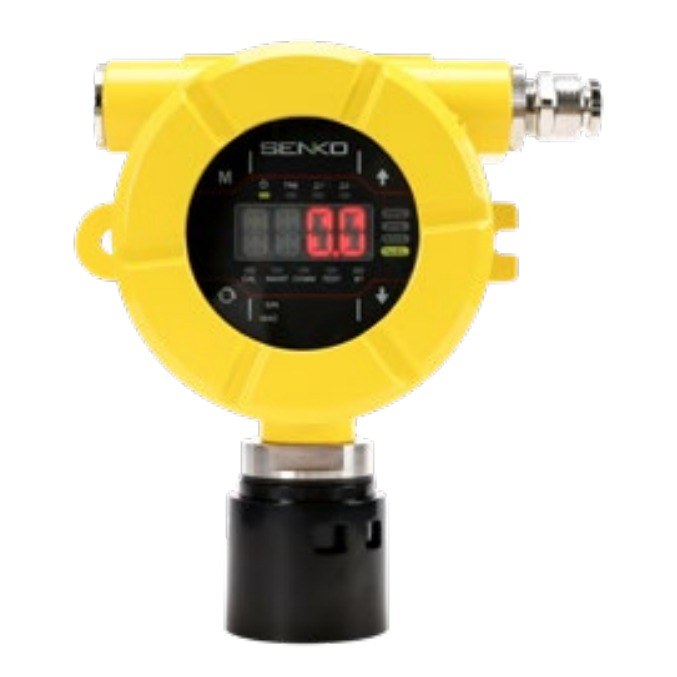

SI-200E Explosion-proof Fixed Gas Detector - CO
SI-200E is a flameproof fixed gas detector for continuous monitoring of oxygen, toxic or combustible gas in hazardous industrial areas. A built-in 4-digit display shows the live reading and self-diagnostics, and the transmitter connects to any control system over 4-20 mA or RS-485, with wireless configuration and calibration. SIL2 compliant.
This Configuration
| Gas | Measuring Range | Low Alarm | High Alarm | Resolution |
|---|---|---|---|---|
| CO (Carbon Monoxide) | 0-2,000 ppm | Set on device | Set on device | 1 ppm |
Key Features
- Explosion-proof (Ex db) enclosure
- 4-digit digital concentration display
- 4-20 mA (HART option) and RS-485 Modbus outputs
- 3 relays: 1st alarm, 2nd alarm, fault
- Wireless configuration and calibration
- SIL2, PESO certified
Specifications
| Dimensions | 169 (W) x 188.5 (D) x 107 (H) mm |
|---|---|
| Weight | 2.4 kg |
| Power | 24 VDC ±10%, 3.6 W |
| Display | 4-digit FND: concentration, alarm, fault |
| Relays | 1st alarm, 2nd alarm, fault (2.0 A @ 30 VDC) |
| Analog Output | 4-20 mA (HART optional) |
| Digital Output | RS-485 Modbus |
| Measuring Method | Diffusion |
| Operating Temperature | -40°C to +60°C |
| Ingress Protection | IP66 |
| Settings | 4 buttons, RS-485 and wireless |
| Warranty | Device 2 years, sensor 1 year |
Certification & Compliance
ATEX II 2 GD Ex db IIC T6 Gb / Ex tb IIIC T80°C Db; IECEx Ex db IIC T6 Gb; INMETRO; CSA & UL Class I Zone 1 / Div 1; PESO Ex db IIC T6 Gb; EMC, RoHS2, RCM, FCC, SIL2
In the Box
Detector with standard accessories (gas type, range and options to be specified at order)
Compatible Accessories
SUS Housing
Need a different gas, range or a quotation for multiple units? Contact Aventra Systems.
