SI-200E : O2 _ LF

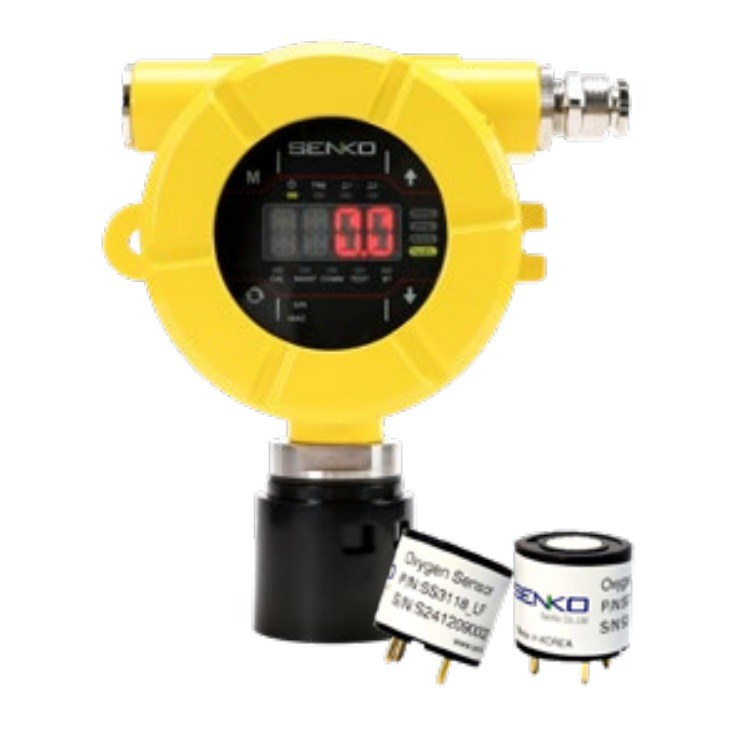

SI-200E O₂ (Long Life) Explosion-proof Oxygen Detector
SI-200E O₂ (Long Life) is the SI-200E fixed detector fitted with a lead-free galvanic oxygen sensor rated for more than 5 years, so oxygen points need far fewer sensor changes than with conventional cells. Note: the lead-free sensor needs a bias voltage and takes slightly longer to stabilise at first power-up, then reads consistently in changing conditions.
This Configuration
| Gas | Measuring Range | Low Alarm | High Alarm | Resolution |
|---|---|---|---|---|
| O₂ (Oxygen) | 0-30 %Vol | Set on device | Set on device | 0.1 %Vol |
Key Features
- Explosion-proof (Ex db) enclosure
- Lead-free long-life O₂ sensor (over 60 months)
- Lower replacement frequency and maintenance cost
- 4-digit digital display
- 4-20 mA (HART option) and RS-485
- Wireless configuration
- SIL2, PESO certified
Specifications
| Target Gas | Oxygen (O₂) |
|---|---|
| Sensor | Galvanic, lead-free |
| Sensor Life | > 5 years |
| Response Time | < 15 s / 90% scale |
| Resolution | 0.1 %Vol |
| Accuracy | ±3% F.S. |
| Operating Voltage | 18-32 VDC, 3.6 W |
| Dimensions | 169 (W) x 188.5 (D) x 107 (H) mm |
| Weight | 2.4 kg |
| Display | 4-digit FND: concentration, alarm, fault |
| Relays | 1st alarm, 2nd alarm, fault (2.0 A @ 30 VDC) |
| Analog Output | 4-20 mA (HART optional) |
| Digital Output | RS-485 Modbus |
| Measuring Method | Diffusion |
| Operating Temperature | -40°C to +60°C |
| Ingress Protection | IP66 |
| Settings | 4 buttons, RS-485 and wireless |
| Warranty | Device 2 years, sensor 1 year |
Certification & Compliance
ATEX II 2 GD Ex db IIC T6 Gb; IECEx Ex db IIC T6 Gb; INMETRO; CSA & UL; PESO Ex db IIC T6 Gb; EMC, RoHS2, RCM, FCC, SIL2
In the Box
Detector with standard accessories (gas type, range and options to be specified at order)
Compatible Accessories
SUS Housing
Need a different gas, range or a quotation for multiple units? Contact Aventra Systems.
₹ 95,772.00
