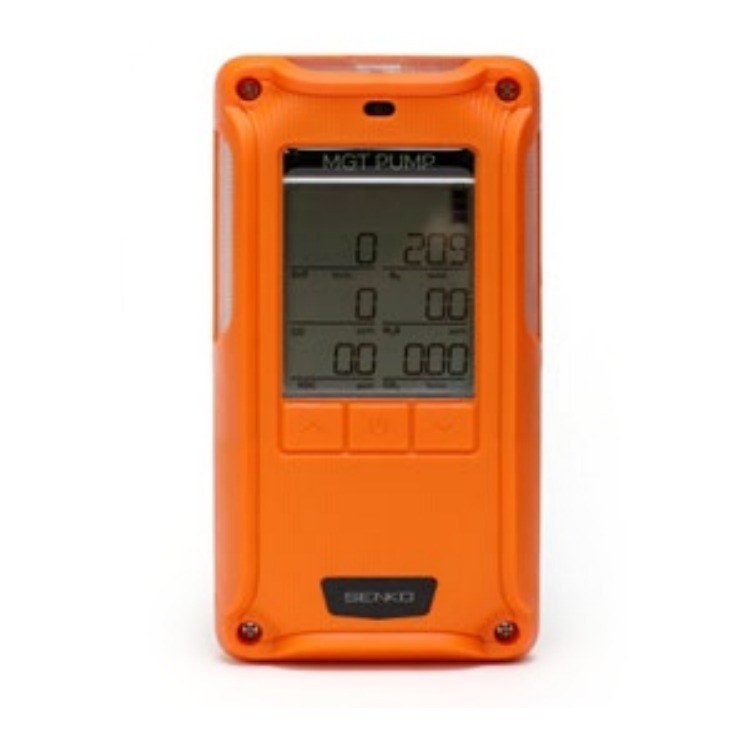

SP-MGTP : O2 ; CO ; H2S ; LEL / Catalytic
SP-MGTP Portable Sampling-Type Multi Gas Detector (up to 6 Gases)
SP-MGTP is a pump-type (sampling) multi gas detector with a built-in pump and probe, so gas can be drawn from tanks, manholes and other confined spaces before entry. It monitors oxygen, toxic gases, combustibles and, on PID models, VOCs in a single instrument, with LED, 90 dB sound and vibration alarms to prevent accidents caused by hazardous gas exposure. This model monitors 4 gases.
This Configuration
Slot 1: O₂ | Slot 2: CO + H₂S | Slot 3: CH₄ catalytic
| Gas | Measuring Range | Low Alarm | High Alarm | Resolution |
|---|---|---|---|---|
| O₂ (Oxygen) | 0-30 %Vol | 19 %Vol | 23 %Vol | 0.1 %Vol |
| CO (Carbon Monoxide) | 0-500 / 0-1,000 ppm | 30 ppm | 60 ppm | 1 ppm |
| H₂S (Hydrogen Sulfide) | 0-100 / 0-200 ppm | 10 ppm | 15 ppm | 0.1 ppm |
| CH₄ (Methane / Combustible) | 0-100 %LEL | 10 %LEL | 30 %LEL | 1 %LEL |
Key Features
- Sampling type with built-in pump and probe
- Up to 6 gases in one instrument
- Sampling hose up to 30 m
- Event and data logging
- Easy maintenance with 2 filters (probe and detector)
- Teflon-coated internal gas line
- Backlit LCD and 3-key operation
- IP67, intrinsically safe and PESO certified
Specifications
| Display | Backlit LCD with status/alarm LEDs |
|---|---|
| Keys | 3 operation / programming keys |
| Sensors | Electrochemical (toxics, O₂), catalytic or NDIR (combustibles), PID (VOC) |
| Alarms | Visual (LCD + LEDs), audible 90 dB, vibration |
| Dimensions | 77 (W) x 146 (H) x 43 (D) mm |
| Weight | 490 g |
| Mounting | Integrated belt clip |
| Operating Temperature | -20°C to +50°C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Ingress Protection | IP67 |
| Pressure Range | 80 kPa to 120 kPa |
| Sampling | Built-in pump, 250-300 cc/min |
| Max. Sampling Hose | 30 m |
| Battery | Rechargeable Li-ion, 4,000 mAh |
| Operating Time | Approx. 30 hours (P-series) / approx. 5 days or more (N-series) |
| Enclosure | TPU-coated polycarbonate |
| Warranty | 2 years from date of purchase |
Certification & Compliance
IECEx / ATEX / CSA/UL / INMETRO / CNEx / CCS / PESO certified (Ex da ia, Ex ia or Ex db ia IIC/IIB T4 depending on version); CPA, EMC, RoHS2, WEEE, FCC, RCM
In the Box
Detector, manual, certificate, adapter with 5 plugs, 1 m tube, quick connector
Compatible Accessories
SENKO IR Link, SP-MGTP Single Docking Station
