SP-SGT-L : SO2

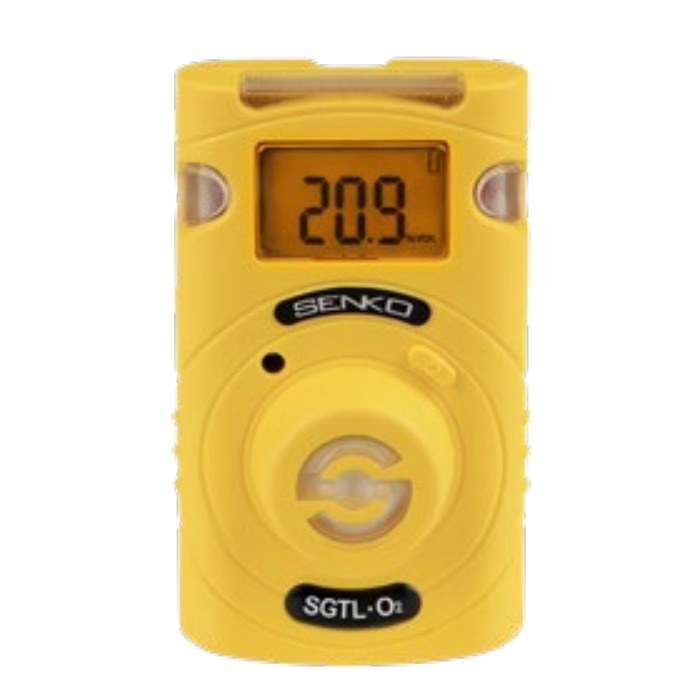

SP-SGT-L Maintainable Single Gas Detector with Backlight
SP-SGT-L is the upgraded version of SENKO's maintainable single gas detector. A backlit LCD makes readings clear in dark or confined spaces, alarms are louder at 95 dB, and power management has been optimised so runtime holds up even with the backlight in use. Sensor and battery are field-replaceable for a long service life.
This Configuration
Range as supplied (available ranges shown); confirm on unit label.
| Gas | Measuring Range | Low Alarm | High Alarm | Resolution |
|---|---|---|---|---|
| SO₂ (Sulfur Dioxide) | 0-50 / 0-100 ppm | 2 ppm | 5 ppm | 0.1 ppm |
Key Features
- Backlit LCD for readability in dark and confined spaces
- Enhanced visual, 95 dB audible and vibration alarms
- Replaceable sensor and battery
- Optimised runtime even with backlight in use
- Power on / off functionality
- Configuration via SENKO IR Link
- Event and data logging
- PESO certified for India
Specifications
| Sensor Type | Electrochemical (toxics and oxygen) |
|---|---|
| Measuring Method | Diffusion |
| Enclosure | Rubber enclosure |
| Dimensions | 49 (W) x 85 (H) x 32 (D) mm |
| Weight | 93 g (toxic) / 104 g (O₂), battery & clip included |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Alarms | Visual (LCD + flashing LEDs), audible buzzer ≥95 dB, vibration |
| Display | LCD with backlight |
| Battery | Lithium primary, 3.6 V, 1,200 mAh |
| Ingress Protection | IP67 |
| Operating Life | 24 months (may vary with operating environment) |
| Options | SENKO IR Link |
Certification & Compliance
IECEx Ex ia IIC T4 Ga; ATEX II 1 G Ex ia IIC T4 Ga; PESO Ex ia IIC T4 Ga; KC, CE, FCC, RCM, REACH, RoHS, WEEE
In the Box
Detector, calibration cap, user manual, calibration & test certificate
Compatible Accessories
SENKO IR Link, Multi Dock Basic, Multi Dock Pro, SGT Multi Docking Station II, Dock SGT
Need a different gas, range or a quotation for multiple units? Contact Aventra Systems.
